Display a virtual card

Handling card details (PANs, Expiry date and and CVV) requires that you comply with the Payment Card Industry Data Security Standards (PCI DSS).

We support two ways to display virtual card details to your customers:

  • Retrieve card details via API (PCI scope) Your backend retrieves card details via API and displays it to the customer. Because your systems handle card data, this may place you in PCI DSS scope. Review your compliance requirements before choosing this option.

  • Use the card widget API (no card details in your systems) Your backend requests a short-lived widget URL and renders it in an iframe (web) or webview (mobile). Card details are displayed inside the widget, so card numbers do not need to flow through your frontend/backend systems.

Retrieve card details via API (PCI scope)​

Retrieving card details via API happens in two steps:

  1. First you need to call our API to retrieve a card_fetch_token
  2. After this you can use the card_fetch_token to retrieve the card details securely

Retrieving a card fetch token​

To use the Card Fetch Token API, please specify the static_token_id and account_id of the Virtual Card you wish to fetch. Additionally, you can optionally specify a public encryption key for us to encrypt the card details.

Sample request

{
    "static_token_id":"c2319421-f0e8-4dd6-a099-124c5a3c6592",
    "account_id": "436605a1-271d-49a7-80f0-bcaf095cdd6a"
}

Sample response

{
    "card_fetch_token":"eyJhbGciOiJIUzI1...adQssw5c",
}

Retrieving virtual card details​

With the card_fetch_token, you can use Card Details API to fetch the sensitive card details (card number, expiry date and CVV). You can then present this information within a secure/restricted area (like logged-in page of your web-app or mobile-app).

Request access token with read card scope​

It's recommended to use a separate access token to access card details. To request the new access token, set the scope parameter to resources/cards.read.

Sample Authentication Request
curl --request POST \
 --url https://auth.openfabric.co/oauth2/token \
 --header 'Authorization: Basic <Base64 Encoded Client Credentials>' \
 --header 'Content-Type: application/x-www-form-urlencoded' \
 --data 'grant_type=client_credentials' \
 --data 'scope=resources/cards.read'

Get Card Details​

You can use the Card Details API to retrieve the card details directly.

warning

The Card Details API uses our Issuer base URL (see Environments). Please be aware that your system might be subject to a higher level of PCI DSS certification if you use this method.

Sample request

{
    "card_fetch_token":"eyJhbGciOiJIUzI1...adQssw5c",
}

Sample response

{
    "provider": "mastercard",
    "card_reference_id": "6b8fb780-9d21-4324-8671-e3e0a66fd4b8",
    "card_number": "5476...8601",
    "redacted_number": "************8601",
    "cvv": "7...",
    "expiry_month": "03",
    "expiry_year": "26"
}

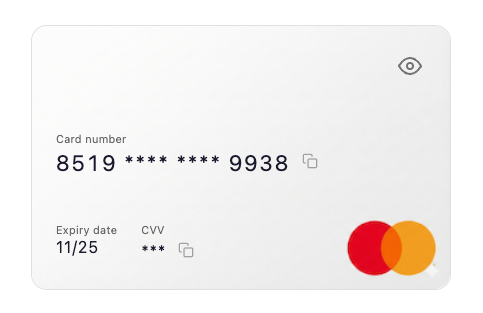

Display card details using the card widget API​

Use the card widget APIs to generate a short-lived, single-use widget URL for displaying card details (PAN, expiry, CVV) inside an iframe or webview. With this method no card details will touch your systems.

Step 1: Create a widget session​

You can create a widget using either:

  • static_token_id
  • card_fetch_token

You can also customize the card art using either:

  • card_art_asset_id (recommended), or
  • card_art_base64 + card_art_content_type (one-off)

Sample request

{
"card_fetch_token": "eyJhbGciOiJIUzI1...",
"card_art_asset_id": "7f3a2b1c-9d4e-5f6a-8b7c-0d1e2f3a4b5c"
}

Sample response

{
"card_widget_url": "http://example.com",
"expired_at": "2019-08-24T14:15:22Z"
}

Step 2: Render the widget URL in your frontend​

Render the returned widget URL in an iframe (web) or webview (mobile).

Example iframe embed
<iframe
  src="WIDGET_URL_FROM_CREATE_CARD_WIDGET"
  title="Card details"
  style="width: 100%; height: 320px; border: 0;"
  allow="clipboard-write"
></iframe>

Optional: Manage card art assets​

If you want to reuse card art across multiple widget sessions, use the card art asset APIs:
