Notifications

Our notification systems send you real-time updates to your systems as they get generated. Open Fabric expects all notifications to be acknowledged with a 2xx HTTP Status Code and in the absence of which we will retry the notification.

In this section you can find further details on how you can implement webhook endpoints to consume our notifications and understand how our failed notification retry works.

Notification delivery method

Open Fabric sends notifications to you via POST requests to a pre-configured webhook endpoint defined by your system. This endpoint should be able to handle a dynamic request body to serve as a receiver for multiple types of notifications.

info

You can set up your notification endpoint during the onboarding process. You only need to set up one endpoint for all notifications you receive from Open Fabric

Notifications can be sent in batches (as an array of notification objects), or as individual notification objects, depending on your webhook configuration.

Endpoint: As configured by you

Method: POST

Authentication Custom header with shared API key, as configured by you

Notification Request Body

Name	Type	Description
notification_id	UUID	Notification ID
type	String	Notification Type Example: v1:pba:transaction:final_auth_reversed The first section of the type indicates the version number of this notification payload.
created_at	String	Notification creation timestamp, in ISO 8601 Date Time format
data	String	Notification Payload The schema of data depends on the notification type

Sample Notification Requests

Batch Mode

[
        {
        "notification_id": "8bedf365-8442-4b6e-a480-7dad7b40ac44",
        "type": "v1:pba:transaction:final_auth_reversed",
        "created_at": "2023-06-24T14:15:22Z",
        "data": {
            "notification_id": "8bedf365-8442-4b6e-a480-7dad7b40ac44",
            "transaction_id": "6182bde8-ee3e-4bd5-935e-e56507e0f809",
            "tenant_reference_id": "31XXXX6723173606",
            "network_transaction_ref": "awqcB1rPDuJIm4yKOQbqJUj5MvpdcH6E",
            "network_message_ref": "CZLIzgNfeyMCabcsXp3liJPgSVGyQypHI2B",
            "amount": 10.0,
            "currency_code": "SGD",
            "billing_amount": 10.0,
            "billing_currency_code": "SGD",
            "billing_exchange_rate": 1.0,
            "settlement_amount": 10.0,
            "settlement_currency_code": "SGD",
            "settlement_exchange_rate": 1.0
        }
    },
    {
        "notification_id": "8bedf365-8442-4b6e-a480-7dad7b40ac44",
        "type": "v1:pba:transaction:pre_auth_reversed",
        "created_at": "2023-06-24T14:15:22Z",
        "data": {
            "notification_id": "8bedf365-8442-4b6e-a480-7dad7b40ac44",
            "transaction_id": "6182bde8-ee3e-4bd5-935e-e56507e0f810",
            "tenant_reference_id": "31XXXX6723173607",
            "network_transaction_ref": "awqcB1rPDuJIm4yKOQbqJUj5MvpdcH6E",
            "network_message_ref": "CZLIzgNfeyMCabcsXp3liJPgSVGyQypHI2C",
            "amount": 50.0,
            "currency_code": "SGD",
            "billing_amount": 50.0,
            "billing_currency_code": "SGD",
            "billing_exchange_rate": 1.0,
            "settlement_amount": 50.0,
            "settlement_currency_code": "SGD",
            "settlement_exchange_rate": 1.0
        }
    }
]

Individual Mode

{
    "notification_id": "8bedf365-8442-4b6e-a480-7dad7b40ac44",
    "type": "v1:pba:transaction:final_auth_reversed",
    "created_at": "2023-06-24T14:15:22Z",
    "data": {
        "notification_id": "8bedf365-8442-4b6e-a480-7dad7b40ac44",
        "transaction_id": "6182bde8-ee3e-4bd5-935e-e56507e0f809",
        "tenant_reference_id": "31XXXX6723173606",
        "network_transaction_ref": "awqcB1rPDuJIm4yKOQbqJUj5MvpdcH6E",
        "network_message_ref": "CZLIzgNfeyMCabcsXp3liJPgSVGyQypHI2B",
        "amount": 10.0,
        "currency_code": "SGD",
        "billing_amount": 10.0,
        "billing_currency_code": "SGD",
        "billing_exchange_rate": 1.0,
        "settlement_amount": 10.0,
        "settlement_currency_code": "SGD",
        "settlement_exchange_rate": 1.0
    }
}

Automatic retries for failed notifications

In the scenario where you did not acknowledge our notifications (with a 2xx HTTP Status code - response body is not required), Open Fabric will employ an exponential retry strategy to redeliver the notification, capped at a maximum of 20 attempts.

Our retries schedule is as follows:

Attempt	Delayed Seconds
1	0
2	30
3	78
4	154.800
5	277.680
6	474.288
7	788.861
8	1292.177
9	2097.484
10	3385.974
11	5447.558
12	8746.093
13	14023.749
14	22467.998
15	35978.797
16	57596.075
17	92183.720
18	147523.953
19	236068.324
20	377739.319

Webhook notification implementation guideline

In this section, We will discuss an example architecture to implement a HTTP endpoint to receive notifications from Open Fabric which is fault tolerance and high availability. This architecture will involve a REST API framework (Express.JS), a message queue broker (ActiveMQ), a queue consumer written in Node.js to consume notification messages, and a Postgres database to store the notification messages.

1. Setting up the Express.js: Start by creating a new Express.js project by setting up necessary middlewares and routes using Express Route. The external system will be able to send HTTP notifications to these routes. When the Express.js application receives a notification, it should validate the data and then send it to ActiveMQ.
2. Integrating ActiveMQ: Set up ActiveMQ which will act as the message broker in the architecture. Create a topic or queue in ActiveMQ. Once an http request hits Express.js application, the message from the http request is published to a corresponding queue on ActiveMQ based on the Notification type.
3. Creating Message Consumer: Create a Node.js application that will act as the consumer of the messages published to the ActiveMQ queue. Using the STOMP or AMQP protocol, connect the Node.js application to ActiveMQ and subscribe it to the topic/queue to which Express.js is publishing. Whenever a new message is published to the topic/queue, this Node.js application should consume the message.
4. Process and Save Notifications to Postgres DB: Once the Node.js application consumes messages from the ActiveMQ topic/queue and processes it, you should save those notifications to the PostgreSQL database for future debugging. To do this, set up a connection to the PostgreSQL database using a library (Node.js) such as pg-promise or node-postgres. Then save the notification payload to a table corresponding to its type.
5. Implementing Error Handling and Fault Tolerance: You should set up multiple queue consumer instances to consume messages from the ActiveMQ to mitigate the risk of a single point of failure. If one instance of the consumer Node.js application fails, the Notification message will not be acknowledged. After that other instance will be able to consume and process that Notification message. Implement logging and error handling mechanisms in all stages of this data flow, so if anything fails, it can be easily diagnosed and fixed. You must always run at least 2 instances of Express.js API server to ensure High Availability. And remember to define HA-Policies for your ActiveMQ cluster configuration.
6. Security Considerations: Secure your system by using HTTPS for your Express.js endpoints. Apply proper user authentication and authorization before the external system can send notifications to your Express.js endpoints. Ensure that your connection to ActiveMQ and PostgreSQL is secured and cannot be accessed by unauthorized parties.

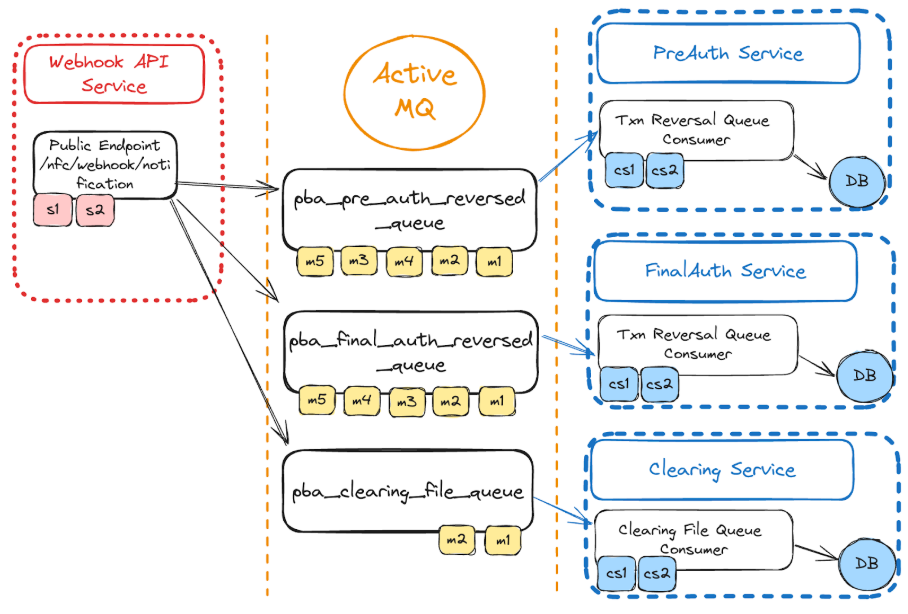

The diagram below will help understand a sample architecture for the webhook notification endpoint implementation on your end.

This is a high-level overview of the architecture. There should be additional components and processes may need to be involved as well. For example: A Ledger Service to handle query/update the customer credit balance and on-hold balance. A File Fetching Service to download the clearing files from Open Fabric (SFTP or AWS S3)
